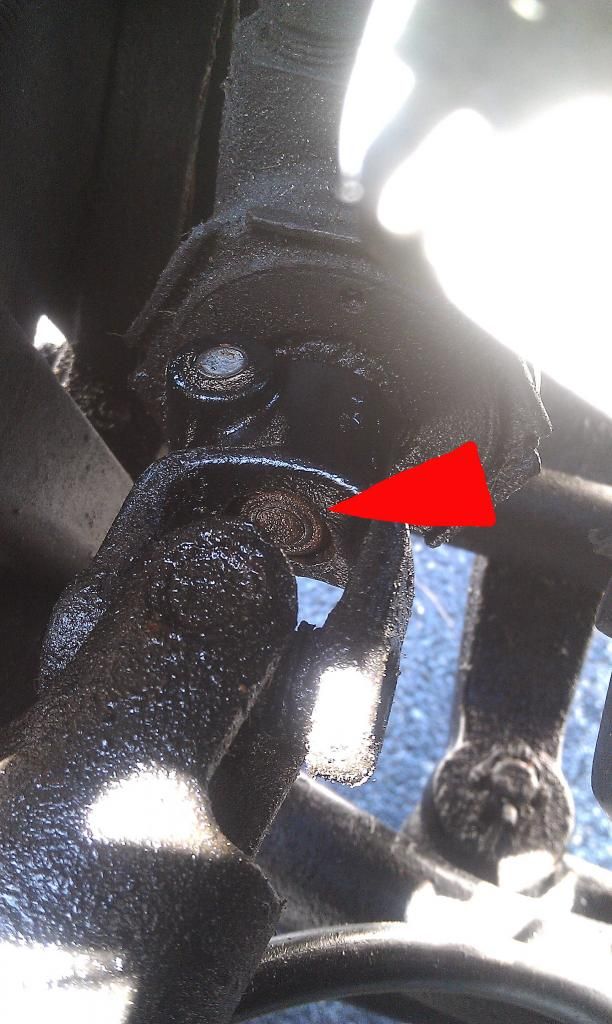

im leaking power steering fluid through my Steering box where the arrow is showing. does anyone know if there's a bearing or bushing that goes there that might have gone bad? or what should i be doing to keep this from happening. I saw in quadratec a Steering Column Lower Bearing Retainer for 76-95 Jeep® CJ & YJ and a
Lower Steering Column Bearing for 76-95 Jeep® CJ-5, CJ-7, CJ-8 Scrambler, Wrangler YJ & Cherokee XJ Is this what i need? do i have to buy a new steering box? im stressing over this, Please any help would be great. this is my daily driver and i need to fix it Asap
Thanks
Luis
question and help with Power steering fluid leak
-
Can't help ya any with this problem. It's one of the very few things I haven't had to fix/replace yet (knock on wood). What are the stats of your Jeep? Year, engine, trans, etc.? Not sure if this is needed for others to help you out or not but it's always good info to supply. If it's a YJ, I can try and look it up in my Haynes manual when I get home in about an hour.
-
Well I looked through my Haynes manual and there's nothing in depth on the steering box. Hopefully someone knowledgable will chime in.
-
That's a Saginaw box. There is tons of info online about rebuilding them. Google Saginaw steering box rebuild or I'll post some links when I get to a computer.
That's the input shaft BTW.
-
Just replace the entire thing.
I dont know what Jeep you have, but if its a CJ or YJ a re manufactured can be bought for around $100 (Rock Auto) Make sure you get a 4 bolt mount. Consider a new High and low side hose at the same time.
These are not typically home rebuild-able.
For a 93 YJ (Just Guessing)
[url=http://www.rockauto.com/catalog/x,carcode,1185151,parttype,7416]http://www.rockauto.com/catalo…ode,1185151,parttype,7416[/url] -
Its a PITA job. Pitman arms can be rough. But ots all doable.
Sent from my SAMSUNG-SGH-I747 using Tapatalk 4 Beta
